Copper Coated Stitching Wire Galvanized Flat Steel With 1.15mm By 0.55mm Type

copper coated stitching wire galvanized flat steel wire with 1.15mm by 0.55mm Type

Stitching Wire Introduction:

Wire diameter: 2.50*0.50mm, 2.20*0.60mm, 2.20*0.70mm, 1.80*0.60mm, 1.50*0.50mm, 0.90*0.60mm, 0.80*0.50mm
and the special requirements of the other specifications
Tensile strength: 650-950/mm2 and special requirements of other strength
Silk by the tolearance: ±0.05mm
Surface: galvanized or copper plating bright and beautiful.

16# (2.15×0.75) ,

17#(2.0×0.7),

18#(1.81×0.71)

20#(1.35×0.65),

22#(1.15×0.55)

Use with box stitching machine to provide extra-strong sides and seams on corrugated cartons.

• Recommended for packaging furniture, mattresses and machine parts.

• High-quality steel with clean, flake-free finish.

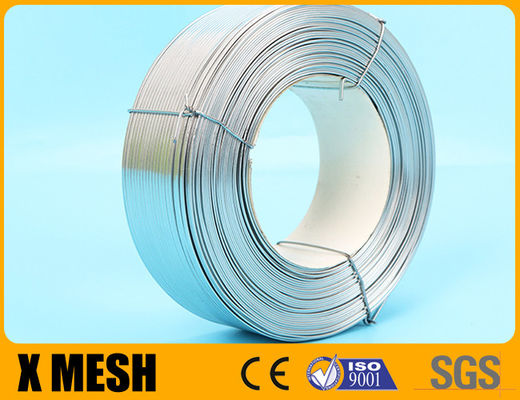

• Galvanized Stitching Wire – Corrosion resistant.

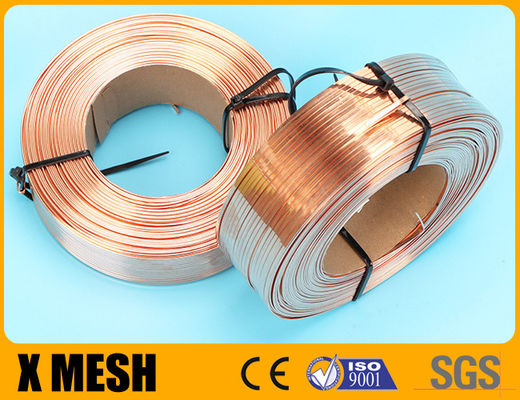

• Copper Coated Stitching Wire – Bright finish. Matches box color.

Stitching Wire Standard Specification:

1.The raw material is iron wire,stainless steel wire,galvanized wire and copper wire.
2.Thickness is 0.2-4mm
3.width is 0.4-12mm.
Different specifications can be ordered to meet customers' requires.

• Item: Galvanized Stitching Flat Wire For Carton Making

• Wire type: Flat wire

• Material: Low carbon steel wire

• Wire diameter: 16#(2.10*0.82mm)17#(1.95.0*0.75mm) 18#(1.75*0.74mm) 20#(1.1*0.6mm)

• Tensile strength: 650MPa-800MPa

• Surface treatment: Galvanized and copper coated

• Packaging: 20kg/roll,1 roll/carton and 2.5kg/roll,10 roll/carton

• 5 each, 10lbs spools per case of copper colored wire

• Wire is on cardboard spools

• Highest quality Conflandey box stitching wire has consistently proven to be the finest performing wire on the market

• Designated for use in all wire stitchers built to accept 103x023 wire on 10 lb spools

Stitching Wire Feature:

Feature: with good surface smoothness and strong corrosion resistance ,the surface with Mirror treatment,looks bright and beautiful.

Stitching Wire Application:

used for paper cartons,tents,also used as buckle, springs, handicrafts, weaving flat wire mesh and so on

Stitching Wire Packing:

• *by spool. small diameter flat wire 2-5kg/spool,plastic film coated.
  *in coil. big diameter flat wire 25kg/coil,put into plastic bags.
