SGH340 2inch x 4inch Truss Nail Plate with galvanized Z275 for Trusses

Large Image : SGH340 2inch x 4inch Truss Nail Plate with galvanized Z275 for Trusses

Product Details:

Place of Origin:	Hebei P.R. China.
Brand Name:	X MESH
Certification:	ISO9001:2015
Model Number:	X MESH-Gang Nail-001

Payment & Shipping Terms:

Minimum Order Quantity:	500PCS
Price:	USD0.15-0.5/PC
Packaging Details:	Wrapped with Carton, Pallet or Wooden Case
Delivery Time:	5-7days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500TONS/MONTH

Contact Now

SGH340 2inch x 4inch Truss Nail Plate with galvanized Z275 for Trusses

Description

Product Name:	Truss Nail Plate	Surface Treatment:	Hot Galvanized 275g/m2
Thickness:	1mm	Hole Width:	2"
Hole Length:	4"	Nail Height:	9mm
Plate Width:	1" - 12"	Plate Length:	2" - 24"
Grade:	40	Packing:	Carton, Pallet Or Wooden Case
Highlight:	Z275 Truss Nail Plate , SGH340 Truss Nail Plate

SGH340 2inch x 4inch Truss Nail Plate with galvanized Z275 for Trusses

Truss Nail Plate Introduction:

Hot dipped galvanized truss nail plate

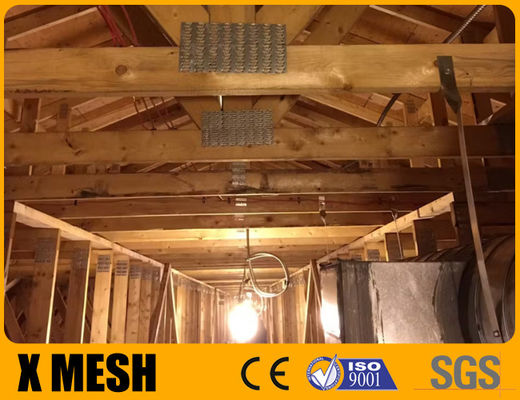

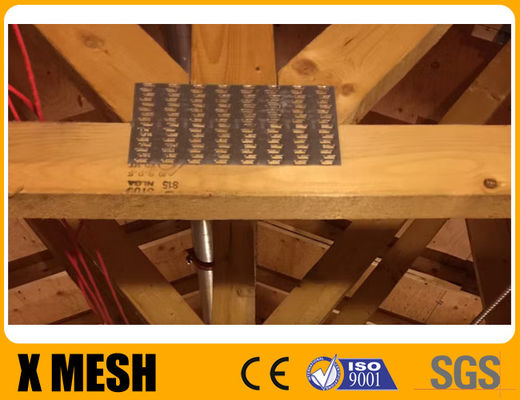

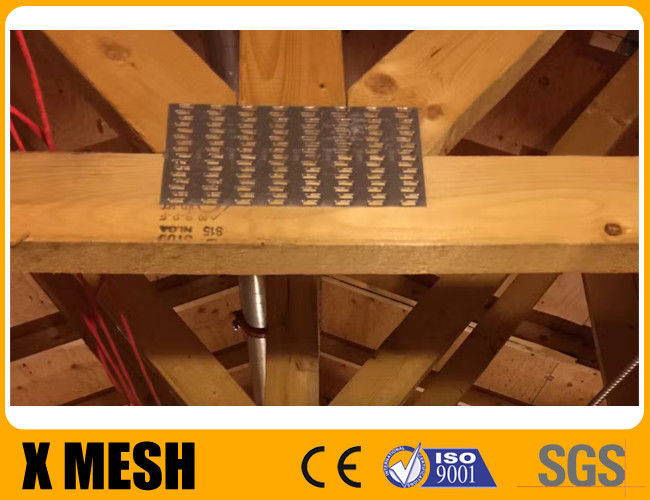

Truss nail plates are punched metal plates featuring integral teeth, delivering the strength required for connecting timber in trussed rafters and applied using hydraulic presses.

Product Name	Truss Nail Plate
Surface Treatment	Hot Galvanized 275g/m2
Thickness	1mm
Hole Width	2"
Hole Length	4"
Nail Height	9mm
Plate Width	1" - 12"
Plate Length	2" - 24"
Grade	40
Packing	Carton, Pallet or Wooden Case

Truss Nail Plate Specifications:

Catalog number	Description	Gauge	Case quantity	Case weight
SP314500	1 1/2″ X 3″	14	500	42
SP514100	1 1/2″ X 5″	14	100	13
SP514100-3	3″ X 5″	14	100	60
SP316100	1 1/2″ X 3″	16	100	7
SP316500	1 1/2″ X 3″	16	500	35
SP416100	1 1/2″ X 4″	16	100	10
SP516100	1 1/2″ X 5″	16	100	11
SP516250	1 1/2″ X 5″	16	250	27
SP616100	1 1/2″ X 6″	16	100	14
SP516100-2	2″ X 5″	16	100	15
SP516100-3	3″ X 5″	16	100	4
SP616100-3	3″ X 6″	16	100	28
SP318100	1 1/2″ X 3″	18	100	4
SP518100	1 1/2″ X 5″	18	100	8
SP618100	1 1/2″ X 6″	18	100	10
SP518100-2	2″ X 5″	18	100	9
SP518100-3	3″ X 5″	18	100	13
SP320100	1 1/2″ X 3″	20	100	4
SP520100	1 1/2″ X 5″	20	100	7
SP620100	1 1/2″ X 6″	20	100	8
SP520100-2	2″ X 5″	20	100	8
SP520100-3	3″ X 5″	20	100	13

Truss Nail Plate Feature:

1. Quick Delivery
2. OEM can be acceptable.
3. Good quality with competitive price
4. Some Quantity is OK.

Truss Nail Plate Application:

Prefabricated Wood Truss
Portable Building/Shed
Railroad Crossties
Pallet and Crating
Manufactured Housing
