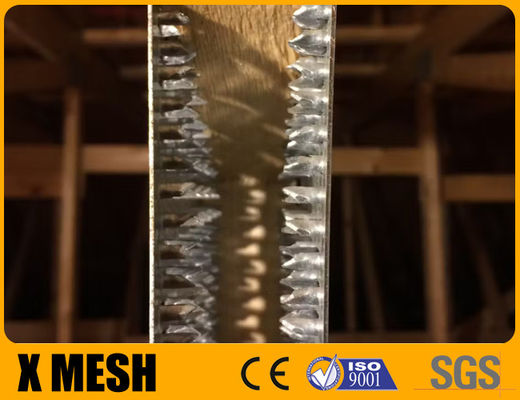

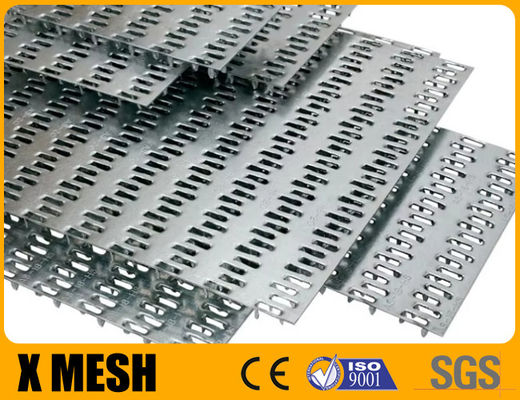

ASTM A 653 Grade 40 Connector Plates used to connect the multiple pieces of a truss

Large Image : ASTM A 653 Grade 40 Connector Plates used to connect the multiple pieces of a truss

Product Details:

Place of Origin:	Hebei P.R. China.
Brand Name:	X MESH
Certification:	ISO9001:2015
Model Number:	X MESH-Gang Nail-002

Payment & Shipping Terms:

Minimum Order Quantity:	500PCS
Price:	USD0.15-0.5/PC
Packaging Details:	Wrapped with Carton, Pallet or Wooden Case
Delivery Time:	5-7days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	500TONS/MONTH

Contact Now

ASTM A 653 Grade 40 Connector Plates used to connect the multiple pieces of a truss

Description

Product Name:	Connector Plates	Surface Treatment:	Hot Galvanized 275-300g/m2
Gauge Specs:	18# Or 20#	Grade Specs:	40
Nail Specs:	3/8 In (9.5 MM)	Nail/Sq In:	8
Standard:	ASTM A 653	Plate Length:	2" - 24"
Width:	1” To 12”	Packing:	Carton, Pallet Or Wooden Case
Highlight:	Multiple Pieces Connector Plates , Truss Connector Plates , Grade 40 Connector Plates

ASTM A-653 Grade 40 Connector Plates used to connect the multiple pieces of a truss

Connector Plates Introduction:

Qijie has been manufacturing dependable, quality connector plates since 1999.

Our connector plates offer the best balance between nail value and steel strength in the

industry and meet or exceed your local building code requirements. We use only the

highest-quality steel for our connector plates

Material: galvanized plate/ s.s plate

Size: 2"4" / 4"6" / 6"*8"...

Type: square/ rectangle/ round

Tooth type: single / double teeth

Nail length: 8mm-9.5mm

Product Name	Connector Plates
Surface Treatment	Hot Galvanized 275-300g/m2
Gauge specs	18# or 20#
Grade specs	40
Nail specs	3/8 in (9.5 MM)
Nail/Sq In	8
Standard	ASTM A 653
Plate Length	2" - 24"
Width	1” to 12”
Packing	Carton, Pallet or Wooden Case

Connector Plates Specifications:

Catalog number	Description	Gauge	Case quantity	Case weight
SP314500	1 1/2″ X 3″	14	500	42
SP514100	1 1/2″ X 5″	14	100	13
SP514100-3	3″ X 5″	14	100	60
SP316100	1 1/2″ X 3″	16	100	7
SP316500	1 1/2″ X 3″	16	500	35
SP416100	1 1/2″ X 4″	16	100	10
SP516100	1 1/2″ X 5″	16	100	11
SP516250	1 1/2″ X 5″	16	250	27
SP616100	1 1/2″ X 6″	16	100	14
SP516100-2	2″ X 5″	16	100	15
SP516100-3	3″ X 5″	16	100	4
SP616100-3	3″ X 6″	16	100	28
SP318100	1 1/2″ X 3″	18	100	4
SP518100	1 1/2″ X 5″	18	100	8
SP618100	1 1/2″ X 6″	18	100	10
SP518100-2	2″ X 5″	18	100	9
SP518100-3	3″ X 5″	18	100	13
SP320100	1 1/2″ X 3″	20	100	4
SP520100	1 1/2″ X 5″	20	100	7
SP620100	1 1/2″ X 6″	20	100	8
SP520100-2	2″ X 5″	20	100	8
SP520100-3	3″ X 5″	20	100	13

Type	Size(inch)	Size(mm)	Thickness(mm)	Tooth Height(mm)
Single/Double nail	2"*3"	50*75	1.0,1.2,1.5	7.5--15.0
Single/Double nail	2"*4"	50*100	1.0,1.2,1.5	7.5--15.0
Single/Double nail	3"*6"	75*150	1.0,1.2,1.5	7.5--15.0
Single/Double nail	4"*4"	100*100	1.0,1.2,1.5	7.5--15.0
Single/Double nail	4"*5"	100*125	1.0,1.2,1.5	7.5--15.0
Single/Double nail	4"*6"	100*150	1.0,1.2,1.5	7.5--15.0
Single/Double nail	6"*6"	150*150	1.0,1.2,1.5	7.5--15.0
Single/Double nail	8"*8"	200*200	1.0,1.2,1.5	7.5--15.0
Single/Double nail	8"*10"	200*250	1.0,1.2,1.5	7.5--15.0

Connector Plates Feature:

1. Quick Delivery
2. OEM can be acceptable.
3. Good quality with competitive price
4. Some Quantity is OK.

Connector Plates Application:

Prefabricated Wood Truss
Portable Building/Shed
Railroad Crossties
Pallet and Crating
Manufactured Housing
